Slew drive MER14
Slew drive MER14
Product price (VAT 0%)
1 870,00 € / pc
Price including VAT 25.5% is 2 346,85 €
- Availability
- In stock
VAT 0% with a valid VAT number. Read more.
- Phone
- +358 561 069 00
- mense@mense.fi
MER slew drives with integrated hydraulic motors have numerous applications. The MER14 is suitable for medium-sized, load-bearing slewing applications. Typical uses include bucket rotators and timber grapples as well as various slewing units in construction and material handling.
| Slew drive technical specifications | |
|---|---|
| Rated torque | 5869.5 Nm |
| Tilt torque (max.) | 71.2 kNm |
| Holding torque | 48 kNm |
| Axial static (max.) | 960 kN |
| Radial static (max.) | 360 kN |
| Axial dynamic (max.) | 230 kN |
| Radial dynamic (max.) | 200 kN |
| Slew drive gear ratio | 86:1 |
| Operating pressure | 50-200 bar |
| Oil flow requirement | 10-60 l/min |
| Weight | 67 kg |
| Color | black |
| Maximum base machine size | ~ 10 t |
Includes hydraulic motor: model BMR160 [157.2 cm3/rev.], connections 1/2" G. Mounting: 2-bolt oval mounting, SAE A flange, shaft: 1" (25.4 mm) SAE 6B, 6-spline shaft
Slew drives are delivered pre-filled with grease.
Accessories
Additional information on MER slew drives what grease you should use and it's rotation speed.
| Additional information | |
|---|---|
| Recommended grease | SHELL GADUS S2 V220 2 |
| Greasing interval | After 300 operating hours or 6 months |
| Screw and ring gear material | Steel |
| Sealing | Outer axle sealing, inner ring rubber lip |
| Operating temperature | -30 °C — +60 °C |
| Rotating speed, heavy load | ~ 2,5 rpm (max.) |
| Rotating speed, light load | ~ 5 rpm (max.) |

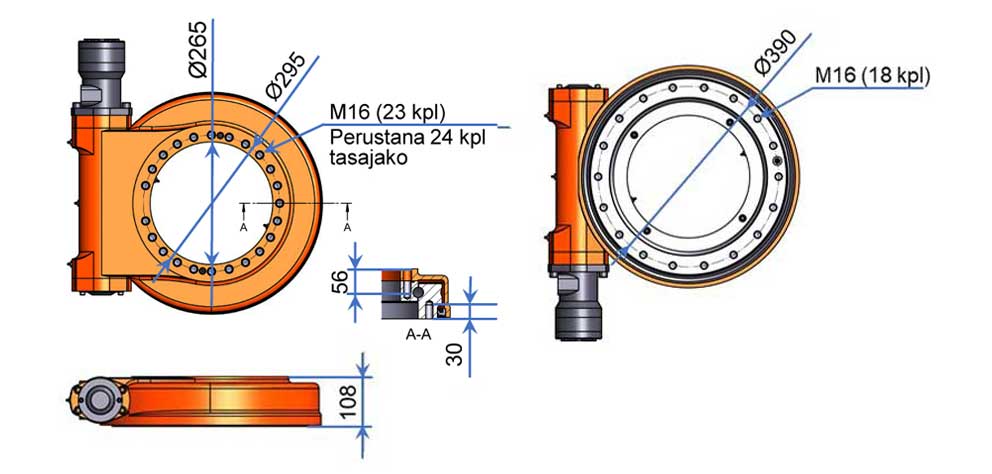

Slew Drive MER14 - Dimensions
The slew drive provides unlimited and stepless rotational movement without slipping while carrying heavy loads. A well-controlled and stable rotation makes work safer and more efficient.
What are the axial-, radial load and tilting moment?
Axial load is parallel to the axis of slewing ring.
Radial load means vertical load to the axis of slewing ring.
Tilting moment is the load multiplied by the distance between the position of load and the center of slewing ring. If the torque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
